Cycloadditions
Cycloadditions, which include the Diels-Alder, ene, and Alder-Bong reactions, are important single-step, ring-forming reactions in organic synthesis. These transformations usually require harsh conditions (high pressures and temperatures) and long reaction times. Diels-Alder cycloadditions were the first reaction types to be examined in conjunction with microwave irradiation.209-236,262 Giguere et al. showed one of the first examples of a microwave-induced Diels-Alder reaction in 1986 (Scheme 42).3 Irradiating anthracene and dimethyl fumarate in a multi-mode instrument at 600 W gave a complete reaction in 10 minutes compared to 72 hours with conventional heating.
![](/pub/media/wysiwyg/microwave-chem-book/chapter-4/scheme42.png)

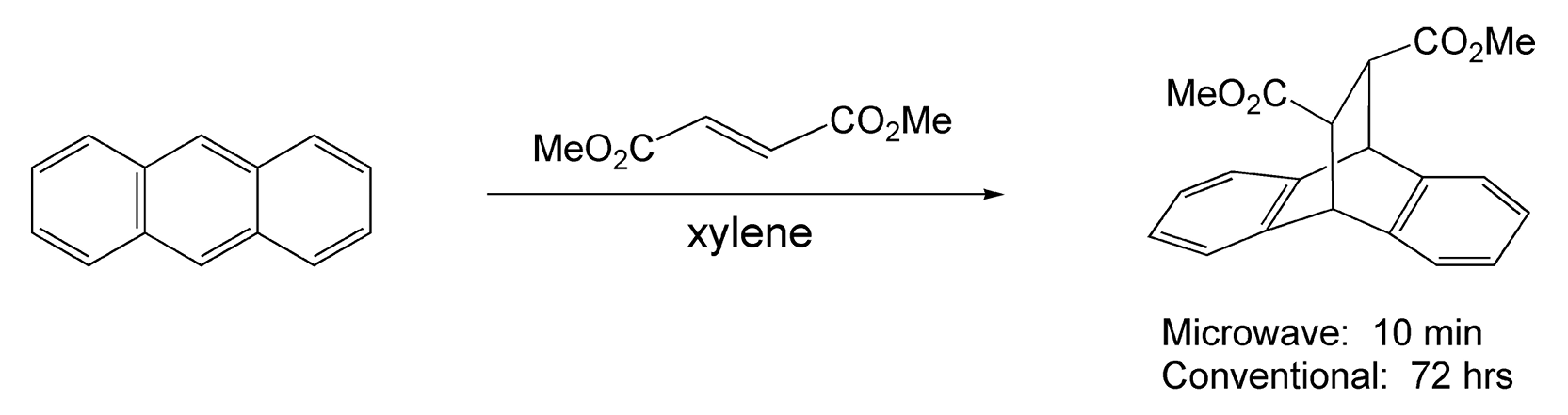

Scheme 42
Majetich and Hicks have also shown successful Diels-Alder reactions.223 Both of the transformations shown in Schemes 43 and 44 were executed in DMF or in solvent-free conditions.
![](/pub/media/wysiwyg/microwave-chem-book/chapter-4/scheme43.png)

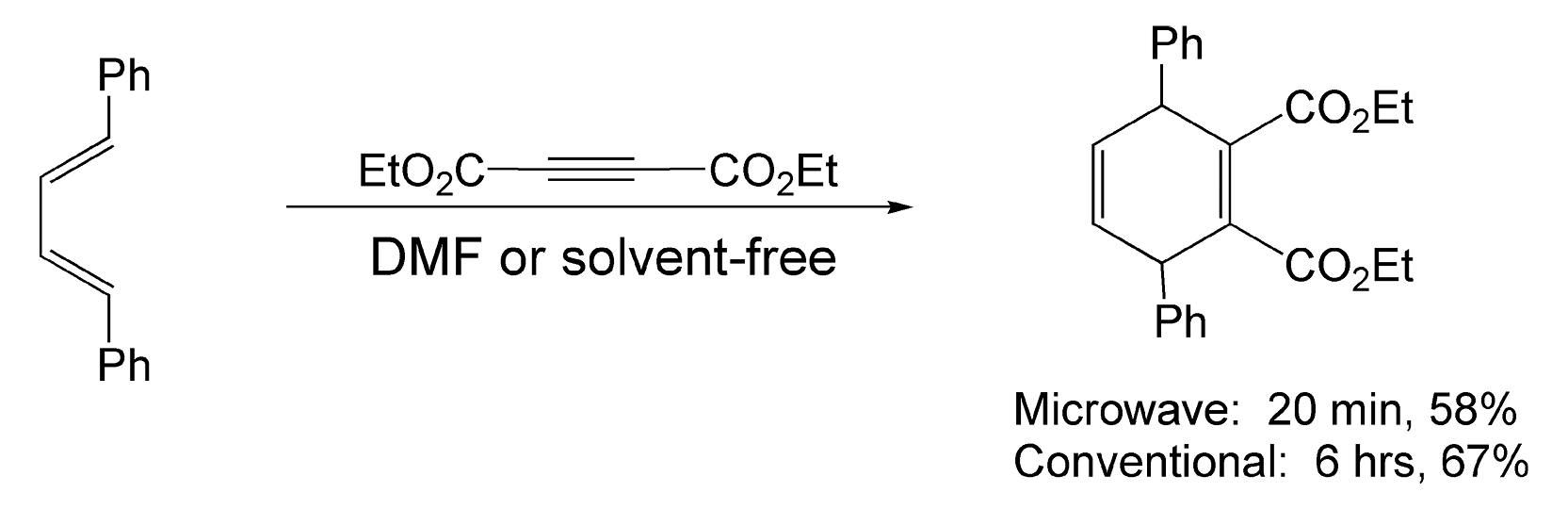

Scheme 43
![](/pub/media/wysiwyg/microwave-chem-book/chapter-4/scheme44.png)

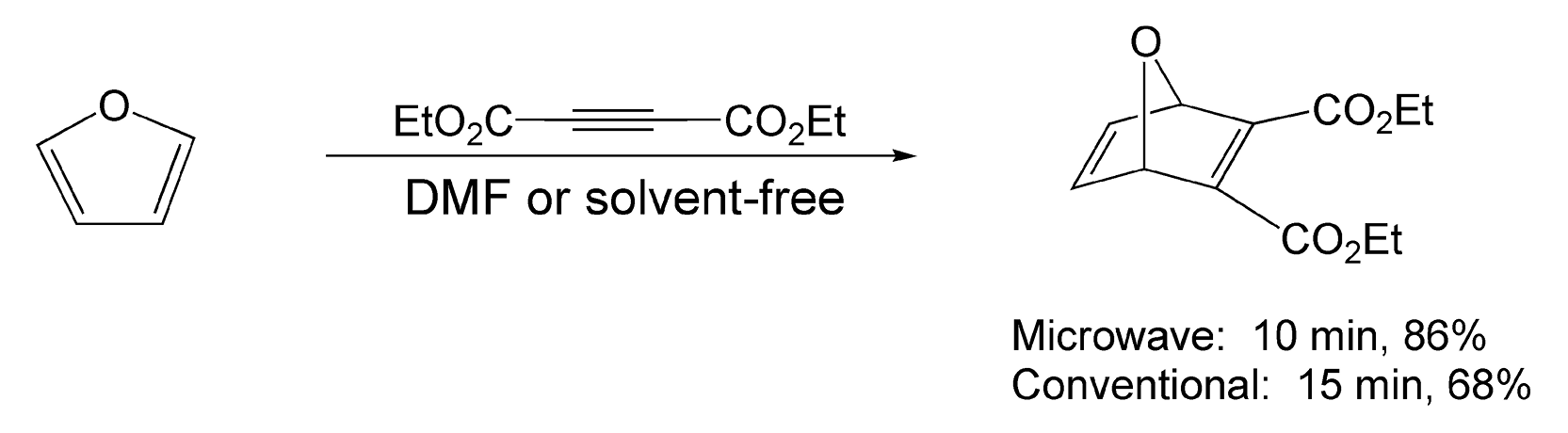

Scheme 44
Microwave heating has also been used extensively in heterocyclic Diels-Alder reactions.224-236,263 These reactions are very important in synthetic chemistry, as they enable the synthesis of biologically significant nitrogen-, sulfur-, and oxygen-containing rings, which are usually difficult to achieve by standard methodology. Avalos et al. reacted 1,2-diaza-1,3-butadienes with diethyl azodicarboxylate (DEAD) to form functionalized tetrazines (Scheme 45).224 Under conventional heating, these reactions take 30 days for completion, whereas with microwave irradiation, they were performed in 15 minutes.
![](/pub/media/wysiwyg/microwave-chem-book/chapter-4/scheme45.png)

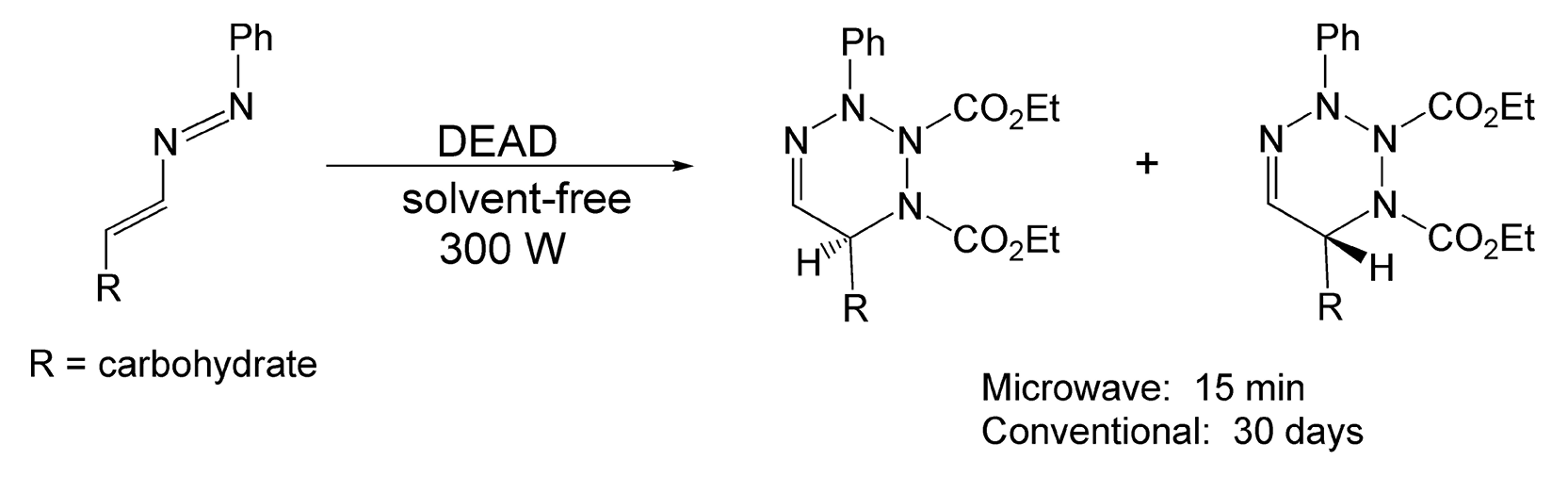

Scheme 45
The ene reaction is a reaction between and alkene and an enophile (analogous to a dienophile in a Diels-Alder reaction). A new C–C bond is formed, and the position of the original double bond shifts through a cyclic transition state. Intramolecular reactions are entropically more favorable, but they still require long reaction times to complete. One example of an intramolecular ene reaction is shown in Scheme 46.3 With microwave irradiation, this solvent-free reaction only took 15 minutes compared to 12 hours with conventional methods.
![](/pub/media/wysiwyg/microwave-chem-book/chapter-4/scheme46.png)

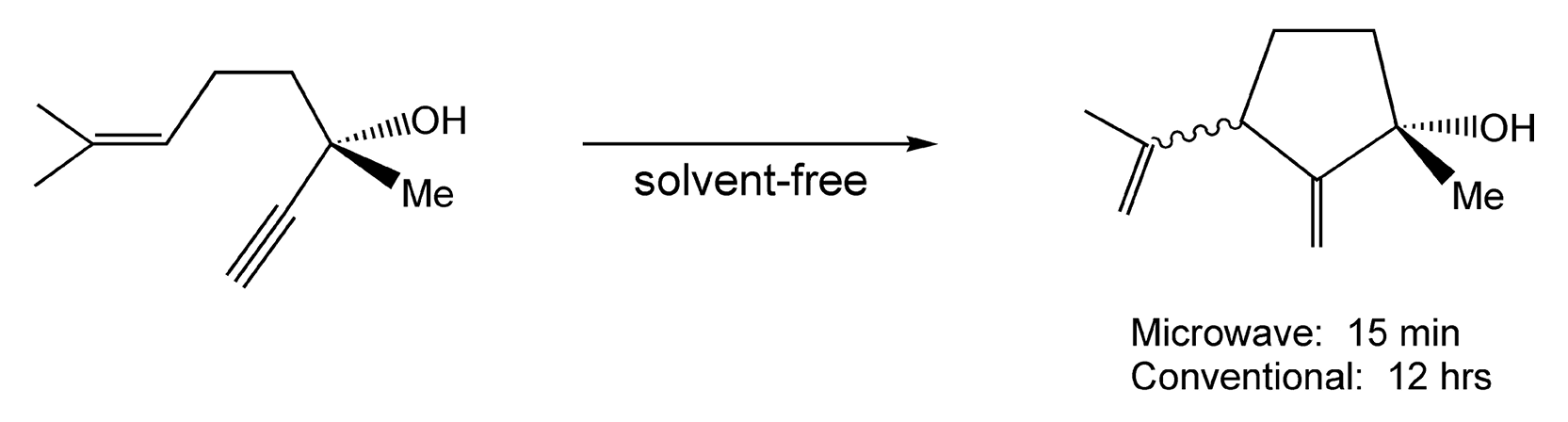

Scheme 46
The Alder-Bong reaction is another interesting cycloaddition reaction. In this particular reaction, an ene reaction is followed by an intramolecular Diels-Alder reaction. The Diels-Alder reaction proceeds rapidly, thus the intermediates formed from the ene reaction cannot be isolated. Scheme 47 shows a reaction between 1,4-cyclohexadiene and diethyl acetylene dicarboxylate.237 With conventional heating methods, this reaction takes 40 hours to complete. With microwave irradiation, it proceeds in 20 minutes, solvent-free.
![](/pub/media/wysiwyg/microwave-chem-book/chapter-4/scheme47.png)

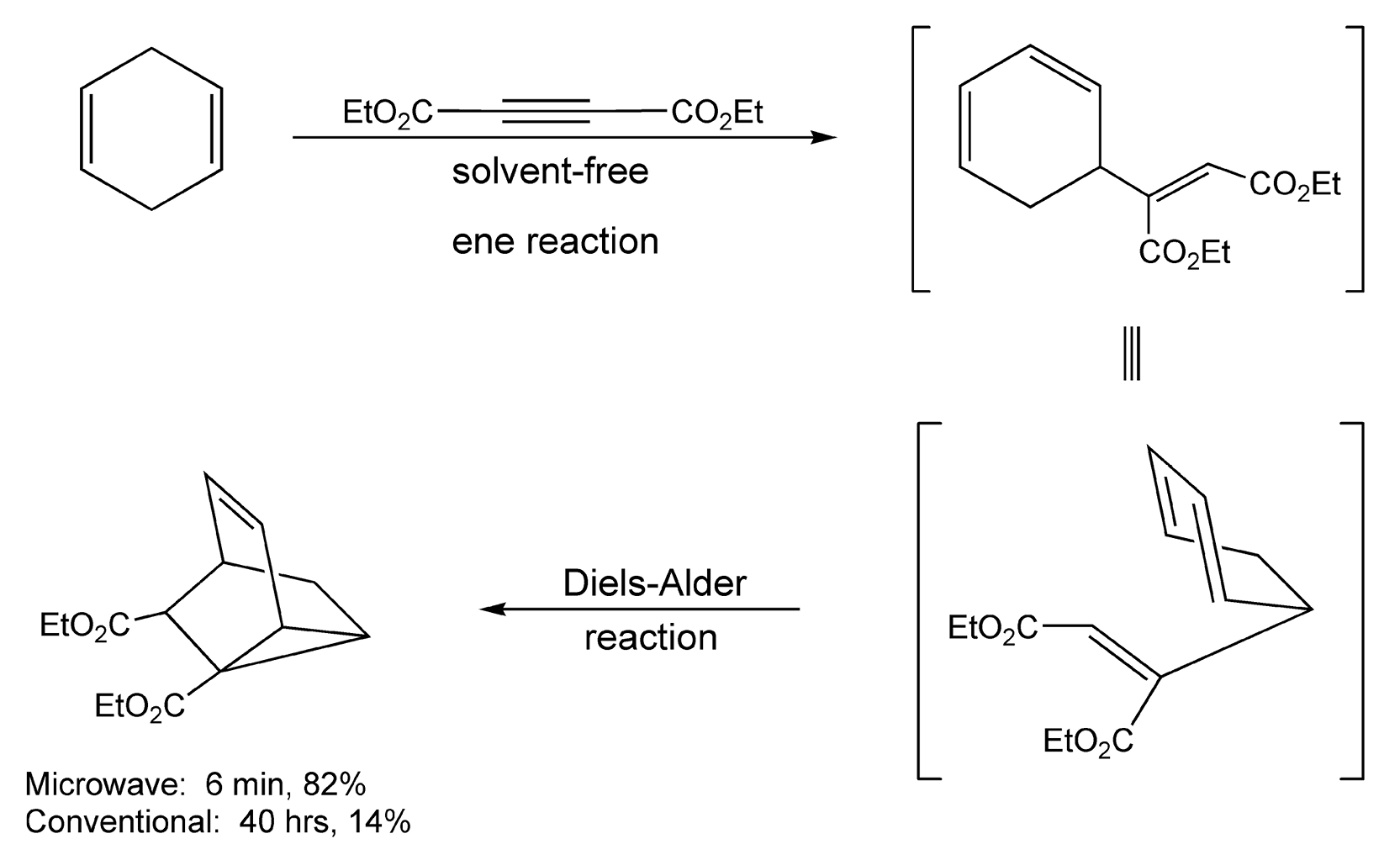

Scheme 47
Instruments
3. Giguere, R.J.; Bray, T.L.; Duncan, S.M.; Majetich, G. Application of commercial microwave ovens to organic synthesis. Tetrahedron Lett. 1986, 27, pp. 4945-48.
209. Sasaki, S.; Ishibashi, N.; Kuwamura, T.; Sano, H.; Matoba, M.; Nisikawa, T.; Maeda, M. “Excellent acceleration of the Diels-Alder reaction by microwave irradiation for the synthesis of new fluorine-substituted ligands of NMDA receptor.” Bioorg. Med. Chem. Lett. 1998, 8, pp. 2983-86.
210. Kamath, C.R.; Samant, S.D. “The Diels-Alder reaction of 2H-pyran-2-ones. Part IV. Microwave-catalyzed Diels-Alder reaction of 4,6-disubstituted-2H-pyran-2-ones with 1,4-naphthoquinone and N-phenylmaleimide.” Indian J. Chem. 1996, 35B, pp. 256-59.
211. Zhu, R.; Hong, P.; Dai, S. “Study on the ‘dry reaction’ without any medium under microwave irradiation.” Synth. Commun. 1994, 24, pp. 2417-21.
212. Sridhar, M.; Krishna, K.L.; Srinivas, K.; Rao, J.M. “Microwave-activated Diels-Alder cycloaddition reactions of 2-chloro-1,2-difluorovinyl phenyl sulfone.” Tetrahedron Lett. 1998, 39, pp. 6529-32.
213. Mayoral, J.A.; Cativiela, C.; Garcia, J.I.; Pires, E.; Royo, A.J.; Figueras, F. “Diels-Alder reaction of α-amino acid precursors by heterogeneous catalysis: thermal vs. microwave activation.” Appl. Catal. A: General 1995, 131, pp. 159-66.
214. Diaz-Ortiz, A. Carrillo, J.R.; Diez-Barra, E.; de la Hoz, A.; Gomez-Escalonilla, M.J.; Moreno, A.; Langa, F. “Diels-Alder cycloaddition of vinylpyrazoles. Synergy between microwave irradiation and solvent-free conditions.” Tetrahedron 1996, 52, pp. 9237-48.
215. Yin, D.H.; Yin, D.L.; Li, Q.H. “Highly regioselective synthesis of para-myrac aldehyde catalyzed by modified HY zeolite under microwave irradiation.” Chin. Chem. Lett. 1996, 7, pp. 697-98.
216. Lu, Y.F.; Fallis, A.G. “A cycloaddition approach to tricyclic taxoid skeletons.” Can. J. Chem. 1995, 73, pp. 2239-52.
217. Takatori, K.; Hasegawa, K.; Narai, S.; Kajiwara, M. “A microwave-accelerated intramolecular Diels-Alder reaction approach to compactin.” Heterocycles 1996, 42, pp. 525-28.
218. Jankowski, C.K.; LeClair, G.; Belanger, J.M.R.; Pare, J.M.J.; Van Calsteren, M.R. “Microwave-assisted Diels-Alder synthesis.” Can. J. Chem. 2001, 79, pp. 1906-09.
219. Silveira, C.C.; Nunes, M.R.S.; Wendling, E.; Braga, A.L. “Synthesis of α-phenylseleno-α,β-unsaturated esters by Wittig-type reactions. Studies on the Diels-Alder reaction.” J. Organomet. Chem. 2001, 623, pp. 131-36.
220. Yoon, H.J.; Lee, J.M.; Im, S.S.; Chae, W.K. “Triplex, microwave induced and conventional Diels-Alder reaction of phenyl-substituted alkynes with cyclopentadienes.” Bull. Korean Chem. Soc. 2001, 22, pp. 543-44.
221. de la Hoz, A.; Diaz-Ortiz, A.; Moreno, A.; Langa, F. “Cycloadditions under microwave irradiation conditions: methods and applications.” Eur. J. Org. Chem. 2000, pp. 3659-73.
222. Sridhar, M.; Krishna, K.L.; Rao, J.M. “Synthesis and Diels–Alder cycloaddition reactions of [(2,2-dichloro-1-fluoroethenyl)sulfinyl]benzene and [(2-chloro-1,2-difluoro ethenyl)sulfinyl]benzene.” Tetrahedron 2000, 56, pp. 3539-45.
223. Majetich, G.; Hicks, R. “The use of microwave heating to promote organic reactions.” J. Microwave Power Electromagnetic Energy 1995, 30, pp. 27-45.
224. Avalos, M.; Babiano, R.; Cintas, P.; Clemente, F.R.; Jimenez, J.L.; Palacios, J.C.; Sanchez, J.B. “Hetero Diels-Alder reactions of homochiral 1,2-diaza-1,3-butadienes with diethyl azodicarboxylate under microwave irradiation. Theoretical rationale of the stereochemical outcome.” J. Org. Chem. 1999, 64, pp. 6297-305.
225. Diaz-Ortiz, A.; Carrillo, J.R.; Gomez-Escalonilla, M.J.; de la Hoz, A.; Moreno, A.; Prieto, P. “First Diels-Alder reaction of pyrazolyl imines under microwave irradiation.” Synlett. 1998, 10, pp. 1069-70.
226. Cado, F.; Jacquault, P.; Dozias, M.J.; Bazureau, J.P.; Hamelin, J. “Tandem conjugate carbon addition-intermolecular hetero Diels-Alder reactions using ethyl-1H-perimidine-2-acetate as a ketene aminal with heating or microwave activation.” J. Chem. Res. (S) 1997, pp. 176-77.
227. Garrigues, B.; Laporte, C.; Laurent, R.; Laporterie, A.; Dubac, J. “Microwave-assisted Diels-Alder reaction supported on graphite.” Liebigs Ann. 1996, pp. 739-41.
228. Motorina, I.A.; Fowler, F.W.; Grierson, D.S. “Intramolecular Diels-Alder reaction of N-alkyl-8-cyano-1-azadienes: a study of the Eschenmoser cycloreversion of dihydrooxazines as a route to N-alkyl-2-cyano-1-azadienes.” J. Org. Chem. 1997, 62, pp. 2098-105.
229. Krishnaiah, A.; Narsaiah, B. “Studies on inverse demand hetero Diels-Alder reaction of perfluoroalkyl-2(1H)-pyridones with different dienophiles under microwave irradiation.” J. Fluorine Chem. 2002, 113, pp. 133-37.
230. Shanmugasundaram, M.; Manikandan, S.; Raghunathan, R. “High chemoselectivity in microwave accelerated intramolecular domino Knoevenagel hetero Diels-Alder reactions - an efficient synthesis of pyrano[3,2c]coumarin frameworks.” Tetrahedron 2002, 58, pp. 997-1003.
231. Diaz-Ortiz, A.; de la Hoz, A.; Prieto, P.; Carrillo, J.R.; Moreno, A.; Neunhoeffer, H. “Diels-Alder cycloaddition of 4,6-dimethyl-1,2,3-triazine with enamines, or their precursors, under microwave irradiation.” Synlett. 2001, 2, pp. 236-37.
232. Fraile, J.M.; Garcia, J.I.; Gomez, M.A.; de la Hoz, A.; Mayoral, J.A.; Moreno, A.; Prieto, P.; Salvatella, L.; Vazquez, E. “Tandem Diels-Alder aromatization reactions of furans under unconventional reaction conditions - experimental and theoretical studies.” Eur. J. Org. Chem. 2001, pp. 2891-99.
233. Hijji, Y.M.; Wanene, J.; Obot, E.; Fuller, J. “Synthesis of substituted furans and substituted benzenes via microwave enhanced Diels-Alder reactions.” Fifth International Electronic Conference on Synthetic Organic Chemistry (ECSOC-5) 2001, E0023 (www.mdpi.net).
234. Kumareswaran, R.; Reddy, B.G.; Vankar, Y.D. “Nafion-H-catalyzed Mukaiyama aldol condensations and hetero Diels-Alder reactions using aldehydes and imines. Part 15: General synthetic methods.” Tetrahedron Lett. 2001, 42, pp. 7493-95.
235. Fernandez-Paniagua, U.M.; Illescas, B.; Martin, N.; Seoane, C.; de la Cruz, P.; de la Hoz, A.; Langa, F. “Thermal and microwave-assisted synthesis of Diels-Alder adducts of (60)-fullerene with 2,3-pyrazinoquinodimethanes: characterization and electrochemical properties.” J. Org. Chem. 1997, 62, pp. 3705-10.
236. Giersson, J.K.F.; Johannesdottir, J.F.; Reynisson, J. “Reactions of 1-aza-1,3-butadienes. An expedient synthesis of unsymmetrically substituted N-benzyl-1,4-dihydropyridines and N-benzyl-1,4-dihydronicotinamides.” Acta Chem. Scand. 1997, 51, pp. 348-50.
237. Giguere, R.J.; Namen, A.M.; Lopez, B.O.; Arepally, A.; Ramos, D.E.; Majetich, G.; Defauw, J. “Studies on tandem ene/intramolecular Diels-Alder reactions.” Tetrahedron Lett. 1987, 28, pp. 6553-56.
262. Sharma, U.; Ahmed, S.; Boruah, R.C. “A facile synthesis of annelated pyridines from β-formyl enamides under microwave irradiation.” Tetrahedron Lett. 2000, 41, pp. 3493-95.
